Complete CAD reconstruction of the ERLO pillar drill

Reverse engineering · 3D modelling · Manufacturing drawings

Piece-by-piece reconstruction of an ERLO pillar drill

CAD reconstruction of the complete assembly after a fall cracked the machine's main body. The work documented every part and the drawings required to manufacture it again.

ERLOComplete machine3D model + drawings

Open case study →

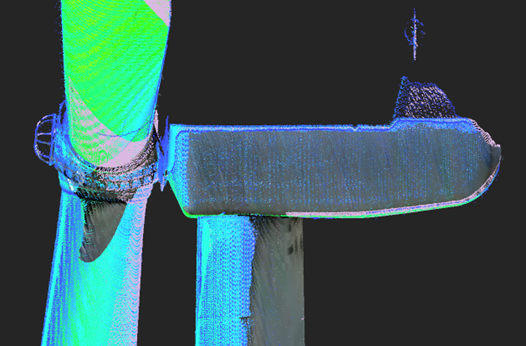

Point cloud of the Nordex N80 wind turbine rotor and nacelle

Reverse engineering · 3D modelling · Validation

Digital model of a Nordex N80 wind turbine

Geometric, aerodynamic and structural reconstruction of a 2.5 MW machine using laser scanning and on-site measurements. The model was validated against twelve months of SCADA data.

Nabla Wind Hub2024–2025Global deviation: 6.7%
